Car Control

Rabbit Car Control

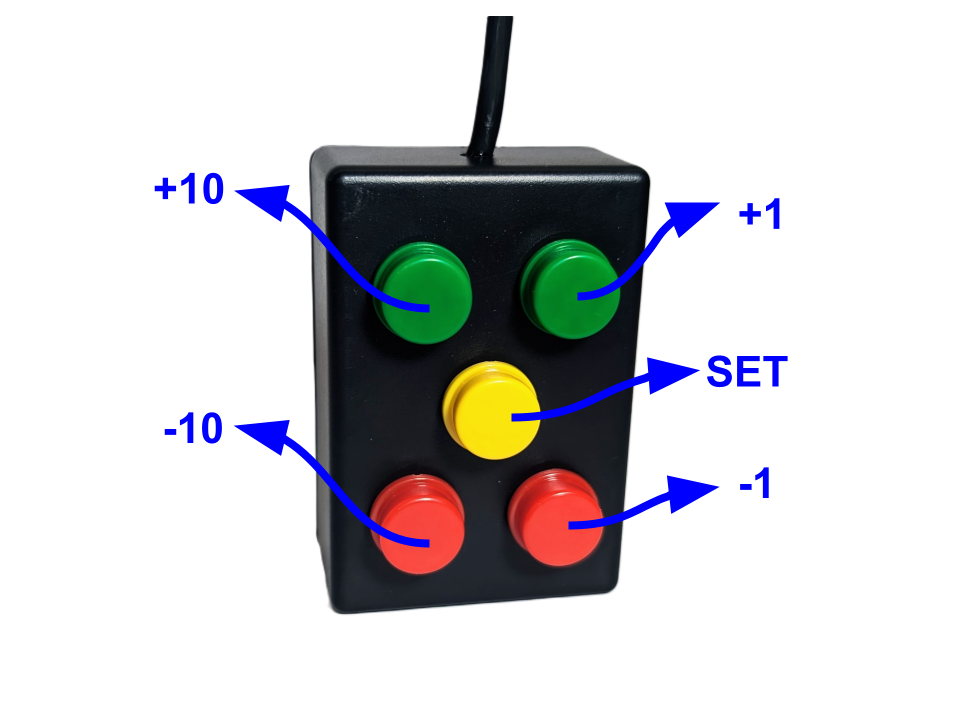

Adjustments are made easily with the buttons on the remote without having to touch the screen!

Use the green and red buttons directly when leaving the track, for example when trimming a curve.

Post adjustment

This odometer correction is the simplest to do:

  1. Click the yellow button quickly when going through the actual reference.
  2. An odometer correction screen opens with a dark background and the odometer value at the time you clicked yellow.
  3. Change the distance for the official measurement of the current reference found in the test roadbook.
  4. Confirm with the yellow button.

Advantage: it can be canceled if you make a mistake at the point where you hit the yellow to mark the position of the reference.

Disadvantage: during the time you are changing the measurements you could have already made the correction in advance.

Early Adjustment

Before arriving the reference you must prepare the following correction:

  1. Hold the yellow button for 1 second before reaching the actual reference.
  2. An odometer correction screen opens with a red background.
  3. Change the distance for the official measurement of the next reference found in the race roadbook.
  4. When it is over the actual reference confirm with the yellow button.

Advantage: when going through the reference, it already adjusts at the same time.

Disadvantage: if you miss the exact point of confirming where the reference is, there is no way to correct it.

Smart adjustment

In addition to the manual settings option, the Rabbit Box has an exclusive function when used with digital RoadBook or with References in the stage. This feature is one of the best innovations for rally lovers! It greatly facilitates the task of making adjustments with maximum precision. When using it, the co-pilot does not have to enter measurements or calculate adjustments!

  1. A few (100/150) meters before the bullet, hold the yellow button for 01 second.
  2. A red screen opens that already indicates the exact measurement of the next reference.
  3. As the car passes the reference marked on the bullet, quickly press the yellow button and the odometer will automatically adjust to the measurement set by the routometer for this bullet!
  4. If you forget to press the button when going through the bullet, just cancel the operation by tapping on the screen.

Tricks

  • On the adjustment screens, use the green and red buttons for a small difference. If the difference is too large it will be faster to enter the full distance using the on-screen keyboard.
  • Fix the control on the passenger door so that you can support your arm while waiting to get to the reference.
  • Have a mobile for the pilot in Pilot screen mode.
